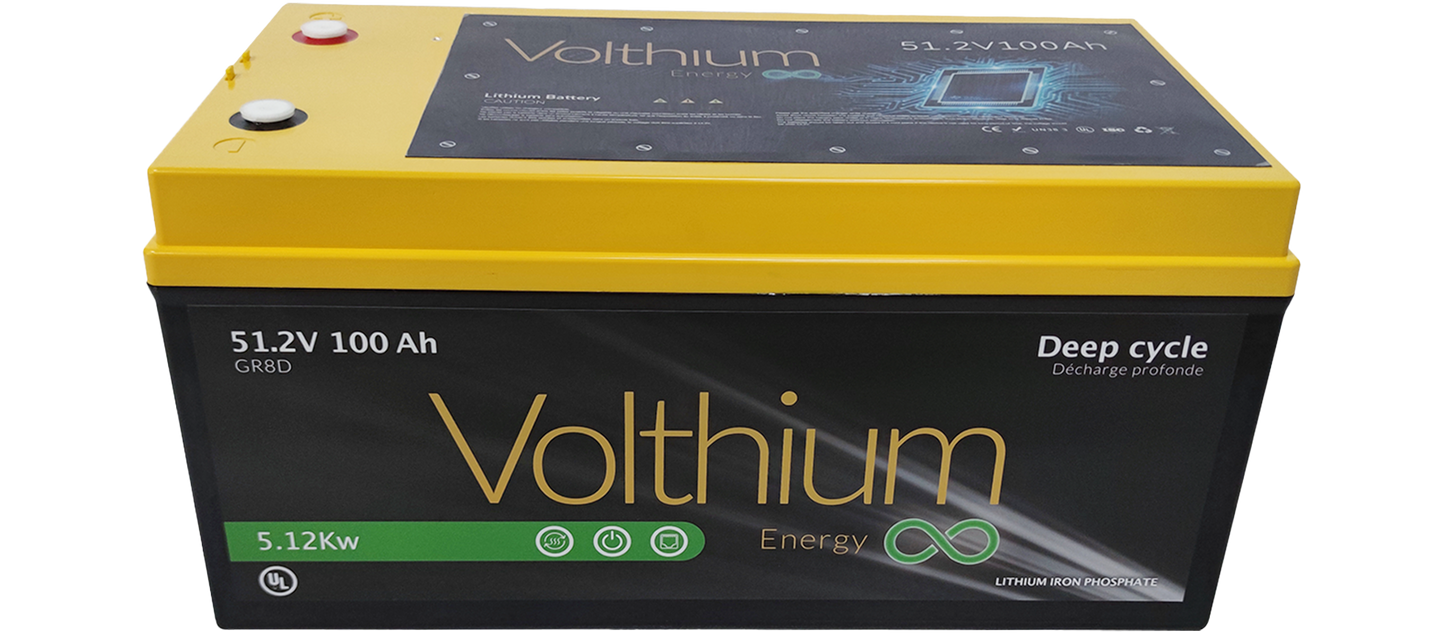

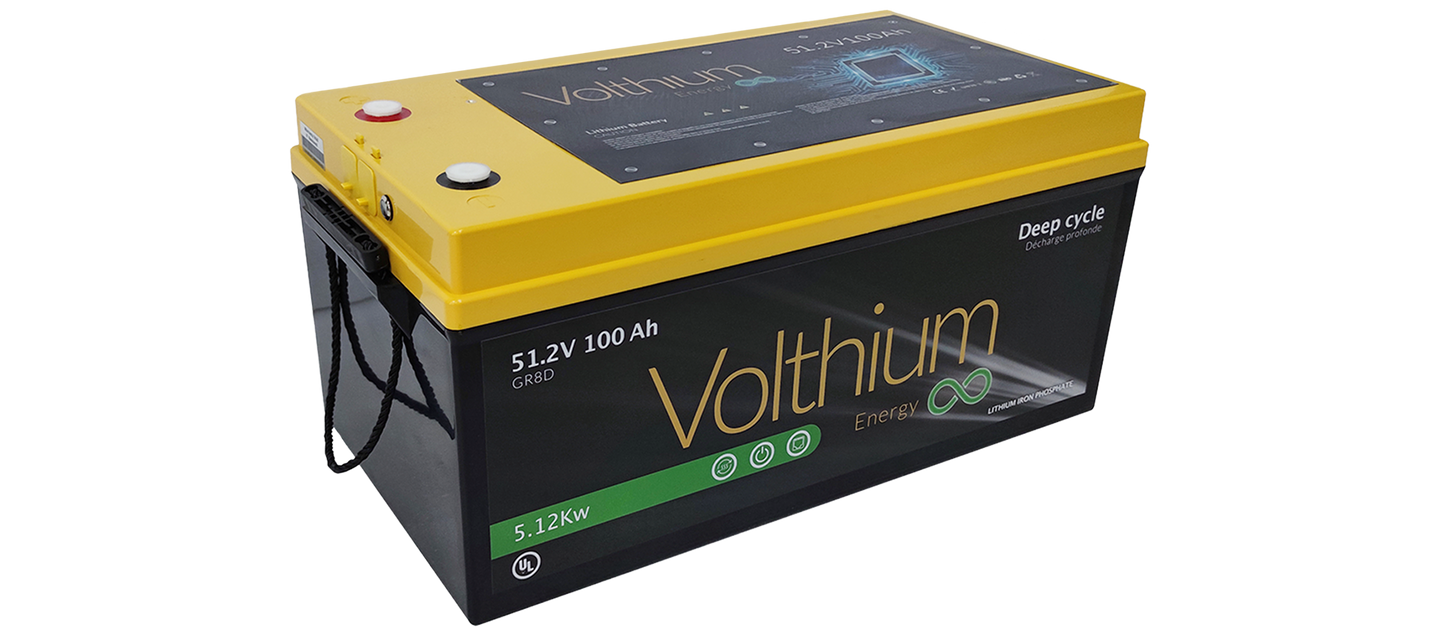

Lithium battery 51.2V 100AH ​​with Soft-Start and ON/Off button of volthium

This lithium battery is designed for solar energy storage systems, offering high performance and long durability. It includes an advanced Battery Management System (BMS) for maximum protection and optimization.

Ideal for chalets and independent houses, it allows expandable storage capacity thanks to a parallel connection of up to 16 units.

Main features:

Nominal voltage: 51.2V
Ability : 100Ah (5,120 Wh of energy)
Recommended charging current: 60A
Maximum charging current: 80A
Continuous discharge current: 100A
Self-discharge: <1% per month
Maximum number of units in parallel: 16

Format: GR8D
Weight : 47.2 kg (104 lbs)
Terminal type: M8

Performance and lifespan:
30% discharge: ≥ 8,200 cycles
80% discharge: ≥ 4,250 cycles
100% discharge: ≥ 3,000 cycles

Advanced Features:

Bluetooth: Optional (Purchase of a Bluetooth dongle is required)
Self-heating: Optional
Communication ports: RS485, CAN Hub (VE.CAN compatible)
Short circuit protection: Yes

Terms of Use:

Charging temperature: 0 to 45°C
Discharge temperature: -20 to 65°C
Storage temperature: -20 to 45°C

Certifications and security:

ETL SP-1000 certified assembly
Cells certified UL1973, CSA UL9540A, IEC62619, IEC62660
UL1077 Circuit Breaker @ CSA C22.2 No. 235-04
UL1977 certified terminal
Transport: UN 3480 | Class 9

Guarantee :
4 years

Volthium 51.2V 100Ah Lithium Battery with Soft-Start and On/Off Button - Datasheet (EN)
Volthium 51.2V 100Ah Lithium Battery with Soft-Start and On/Off Button - User Manual (EN)
