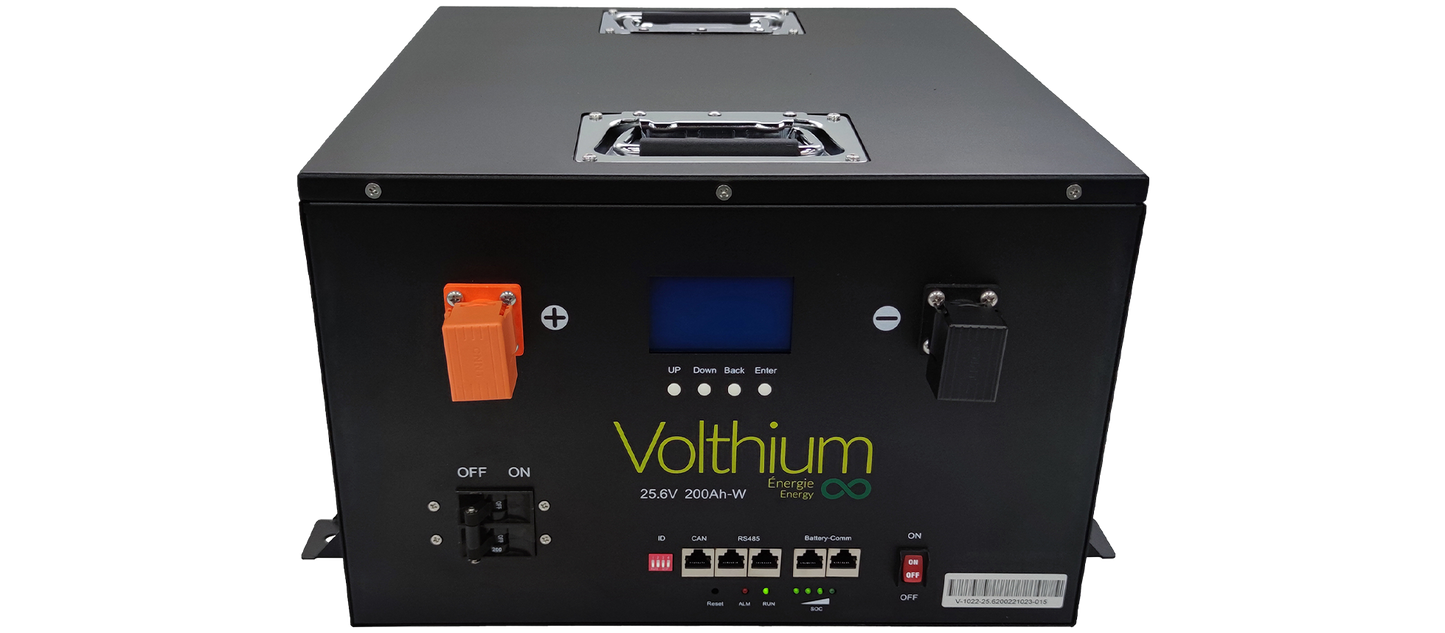

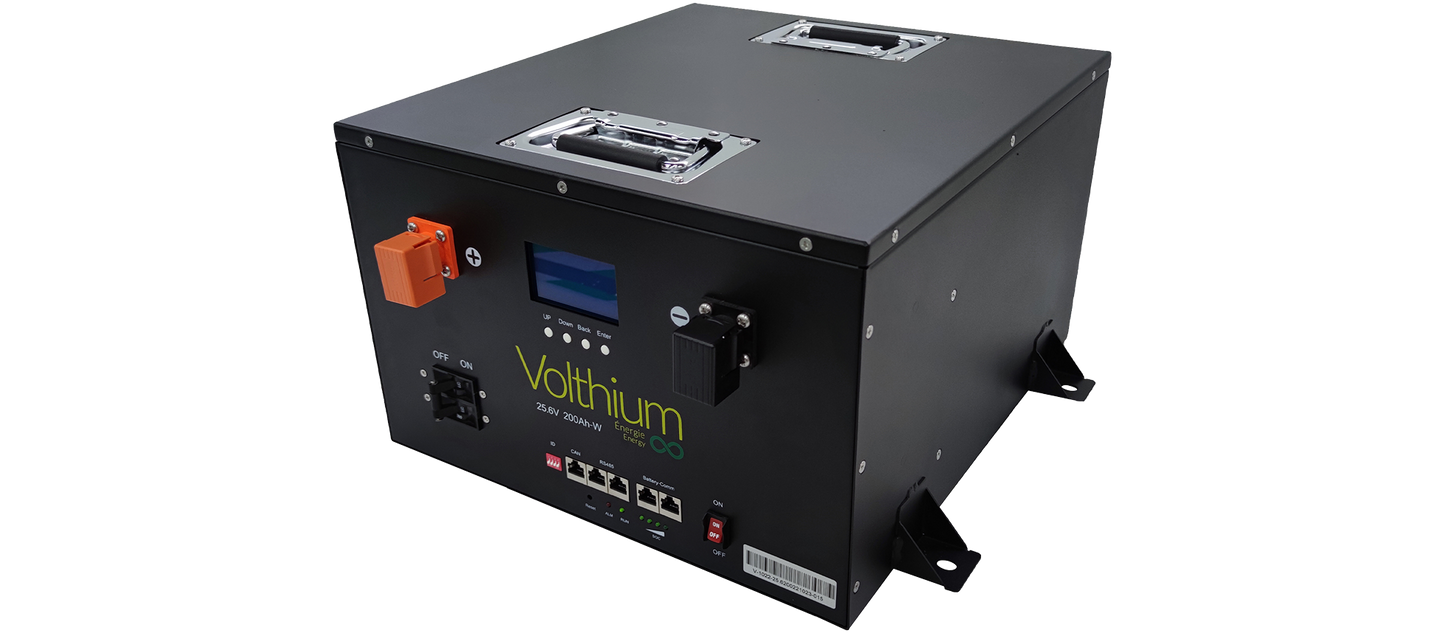

Lithium wall battery 25.6v 200Ah of volthium

This deep cycle lithium battery is designed for solar energy storage systems, offering high performance and long durability. It includes an advanced Battery Management System (BMS) for maximum protection and optimization.

Ideal for chalets and independent houses, it allows expandable storage capacity thanks to a connection of up to 4 units in parallel and 2 in series.

Main features:

Nominal voltage: 25.6V
Ability : 200Ah (5,120 Wh of energy)
Recommended charging current: 80A
Maximum charging current: 125A
Continuous discharge current: 150A

Maximum number of units in parallel: 4
Maximum number of units in series: 2

Support Type: On the wall (Wallmount)
Format: 5U
Weight : 47.2 kg (104 lbs)
Terminal type: M8

Performance and lifespan:

30% discharge: ≥ 8,200 cycles
80% discharge: ≥ 6,000 cycles
100% discharge: ≥ 3,500 cycles

Advanced Features:

Bluetooth: No
Communication ports: 2x RS485, 2x Batt. Com., 1x CAN (VE.CAN compatible)
Short circuit protection: Yes

Terms of Use:

Charging temperature: 0 to 45°C
Discharge temperature: -20 to 65°C
Storage temperature: -20 to 45°C

Certifications and security:

Certified cells: UL1973, UL1642, UL9540A, IEC62660
Certified circuit breaker: UL1077 CSA C22.2
Transportation : UN 3480 | Class 9

Guarantee :
4 years

Volthium 25.6V 200Ah Wall-Mounted Lithium Battery - Datasheet (FR)

Volthium 25.6V 200Ah Wall-Mounted Lithium Battery - User Manual (EN)
